KLX110 Elka Shock Stage 2


645-KLX-1101
645-KLX-1101
645-KLX-1101

Click photo to zoom

KLX110 Elka Shock Stage 2
QTY    $435.95
Out of stock
Any additional options and/or replacement parts will be available at the bottom of this page

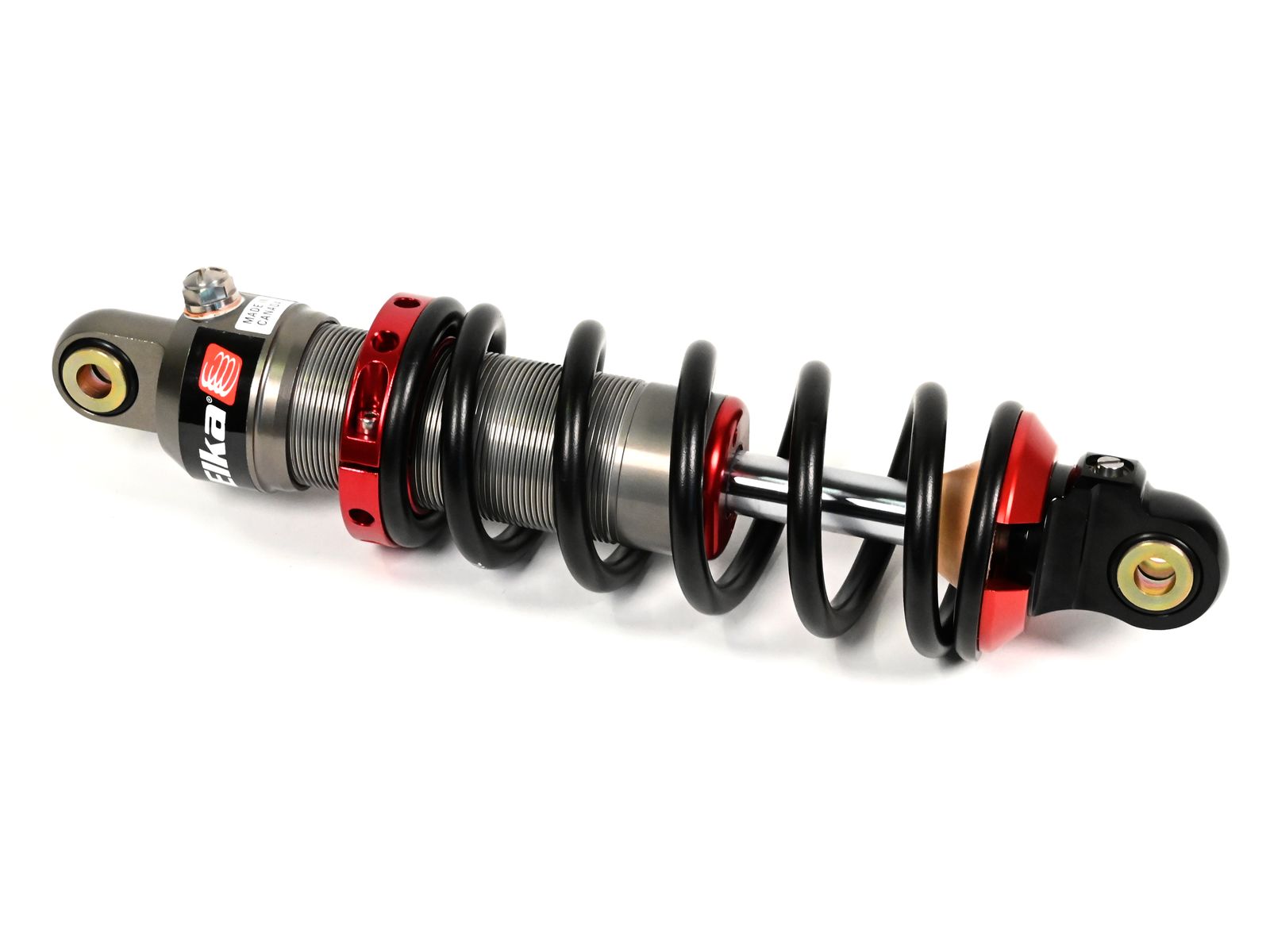

KLX110 Elka Shock Stage 2

BBR worked with Elka Suspension to come up with a high quality, rebuildable, adjustable pitbike shock. The result is their brand new aluminum body Stage 2 playbike shock. A perfect match to our Stock Comp (or older generation Super Stock) swingarms, these Elka shocks feature adjustable rebound damping, adjustable preload, and a giant 16mm shock shaft. We had Elka valve these shocks for aggressive adult riders (and fast kids) and they're sprung for 165-200 lbs. riders.

Custom valving and spring rates are available with a 2 week lead time.

Stock KLX110 (non-L) shock is 255 mm
Stock KLX110L is 272 mm
Elka Stage 2 shock is 272 mm


  • Adjustable spring preload
  • Adjustable rebound damping
  • Light weight hard anodized aluminum body
  • Huge 16mm shock shaft
  • Low friction internals
  • Triple sealing seal head design
  • 272 mm in length (approx. 10.7 inches)
  • Made in Canada

Note: Factory service and parts are available directly available from Elka Suspension (www.elkasuspension.com) in Canada or from Impact Solutions (www.impactsolutionsatv.com) in the US.


Tech Info
645-KLX-1101 Instructions

Part NumberImageDescriptionPrice
645-KLX-1101645-KLX-1101Shock - BBR/Elka Shock 272mm length, 250 lbs spring / KLX110/L 2002-Present$435.95
