BBR 26mm Carb Kit

420-HXR-5005

421-BBR-2010

421-MIK-5001

Click photo to zoom

BBR 26mm Carb Kit

QTY $293.95

Out of stock

bbrmotorsports.shop

Any additional options and/or replacement parts will be available at the bottom of this page

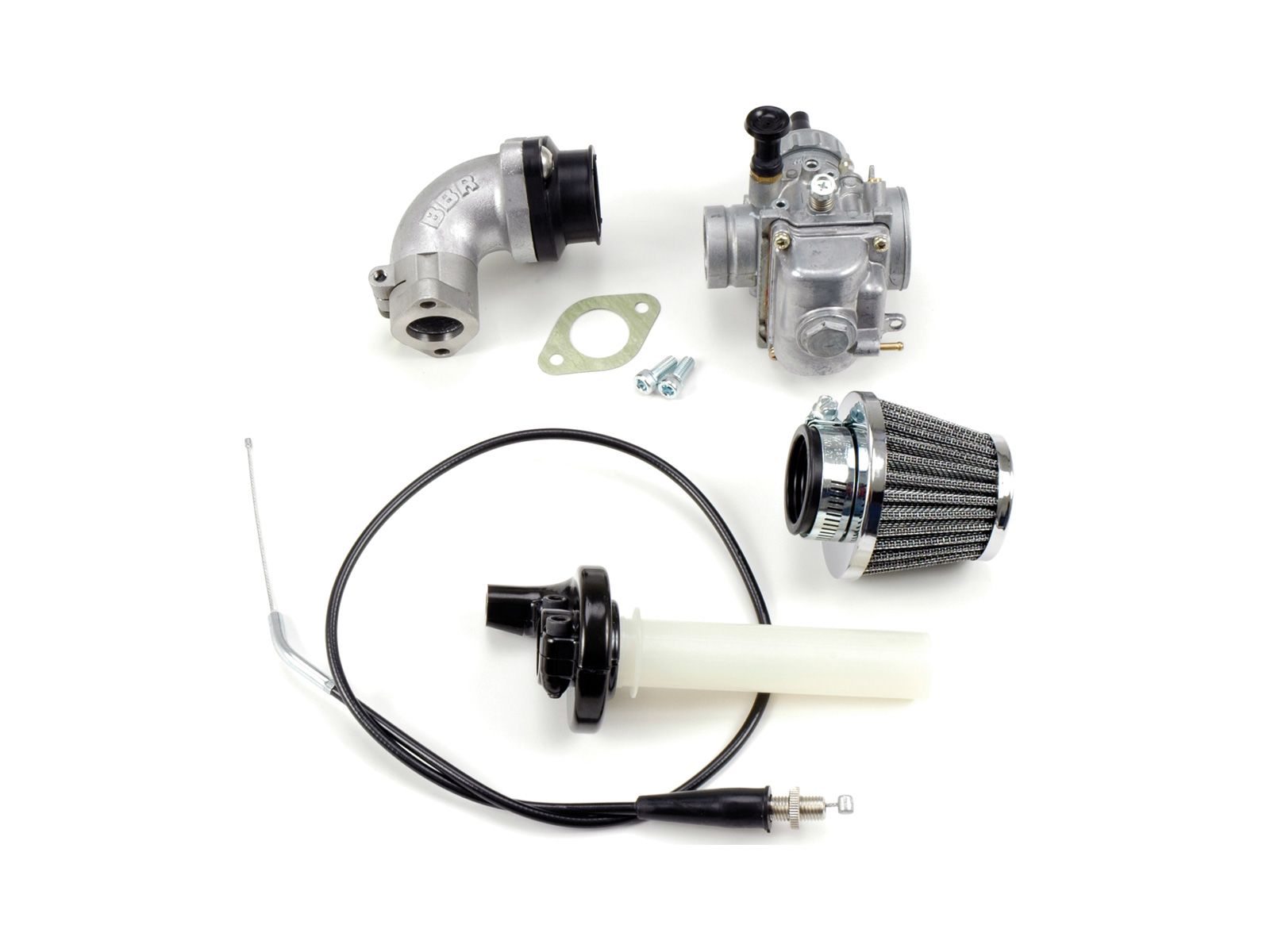

BBR 26mm Carb Kit

A complete kit with 26mm Mikuni Carburetor, BBR high-flow, rotating mount, intake manifold, throttle, throttle cable, extra jets for fine tuning, air filter and all necessary hardware.

26mm Mikuni Carb
Special high-flow rotating mount intake manifold
Includes gaskets and bolts
Includes throttle and cable
Includes 5 main jets and 3 pilot jets

Application Note: This 26mm Carb Kit is not recommended for use on stock displacement CRF50's. Recommended for 106cc or larger displacement motors.

Note: The throttle in this kit is for standard 7/8" diameter handlebars. The stock Honda XR/CRF50 uses 3/4" diameter handlebars. You must use a handlebar kit that changes to 7/8" diameter handlebars to use this throttle.

BBR General Jetting Guidelines Chart

Part Number	Image	Description	Price
420-HXR-5005		Carb Kit - BBR Mikuni 26mm / XR/CRF50, 00-Present	$293.95	bbrmotorsports.shop

Replacement Parts

Part Number	Description	Price

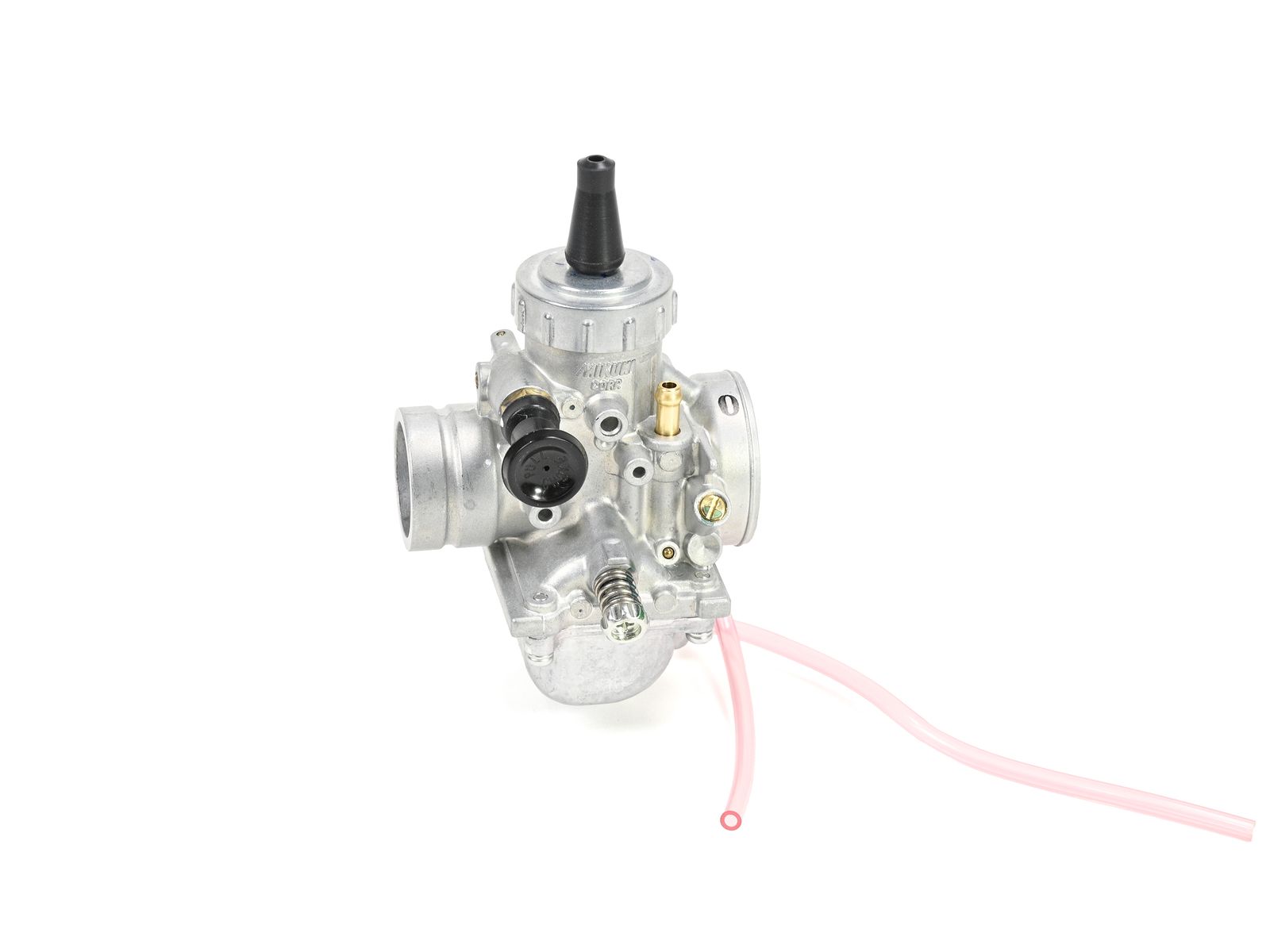

421-BBR-2010	Carburetor Only - Mikuni VM26 (190m/22.5p) *	$153.95	bbrmotorsports.shop

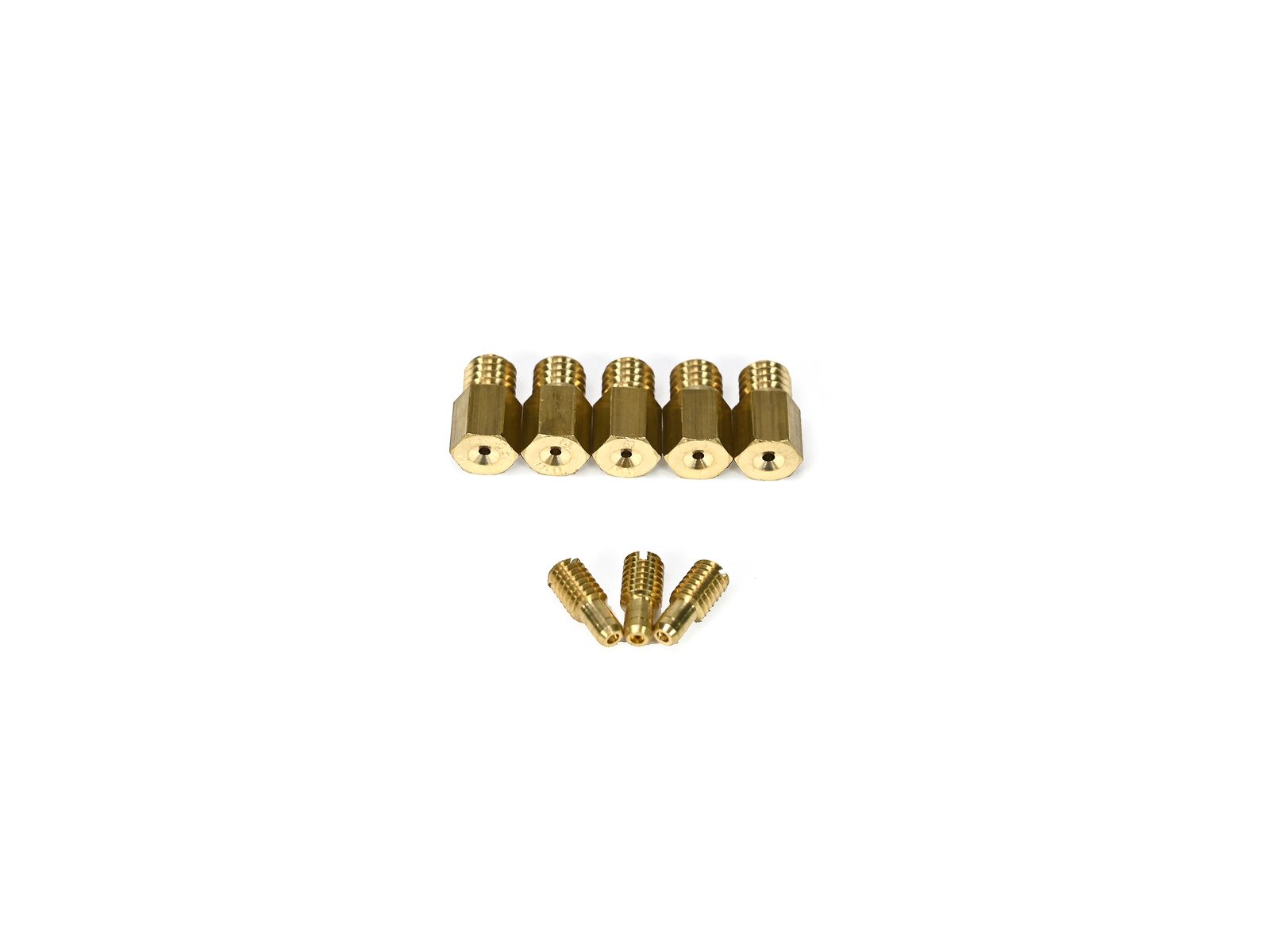

421-MIK-5001	Jet Kit - Mikuni (150,160,170,180,200,20, 17.5 & 25)	$36.95	bbrmotorsports.shop
421-MIK-9001	Gasket - Float Bowl / Mikuni VM26	$6.95	bbrmotorsports.shop

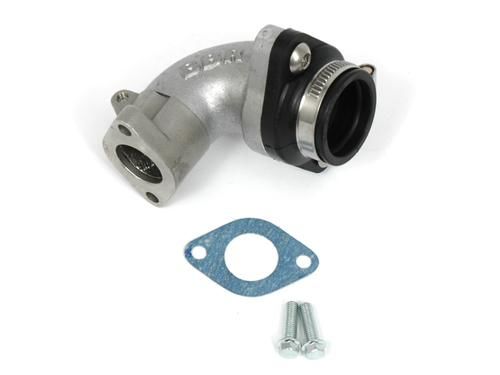

422-HXR-5005	Intake Manifold Set - BBR VM26 / XR/CRF50	$83.95	bbrmotorsports.shop

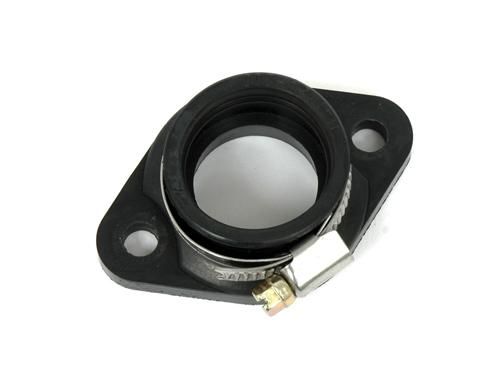

422-KLX-1101	Mounting Flange - Mikuni VM26	$25.95	bbrmotorsports.shop
512-BBR-1001	Throttle Cable - BBR 18mm/26mm Carb Kit / XR/CRF50 / KLX/DRZ110 / Bar Kit - CRF110F / DRZ70	$29.95	bbrmotorsports.shop
512-BBR-2001	Throttle Assembly - BBR Carb Kits / Brake Kits	$22.95	bbrmotorsports.shop

Optional Parts

Part Number	Image	Description	Price
500-BBR-1001		Grips - BBR 'CR' Style	$10.95	bbrmotorsports.shop
