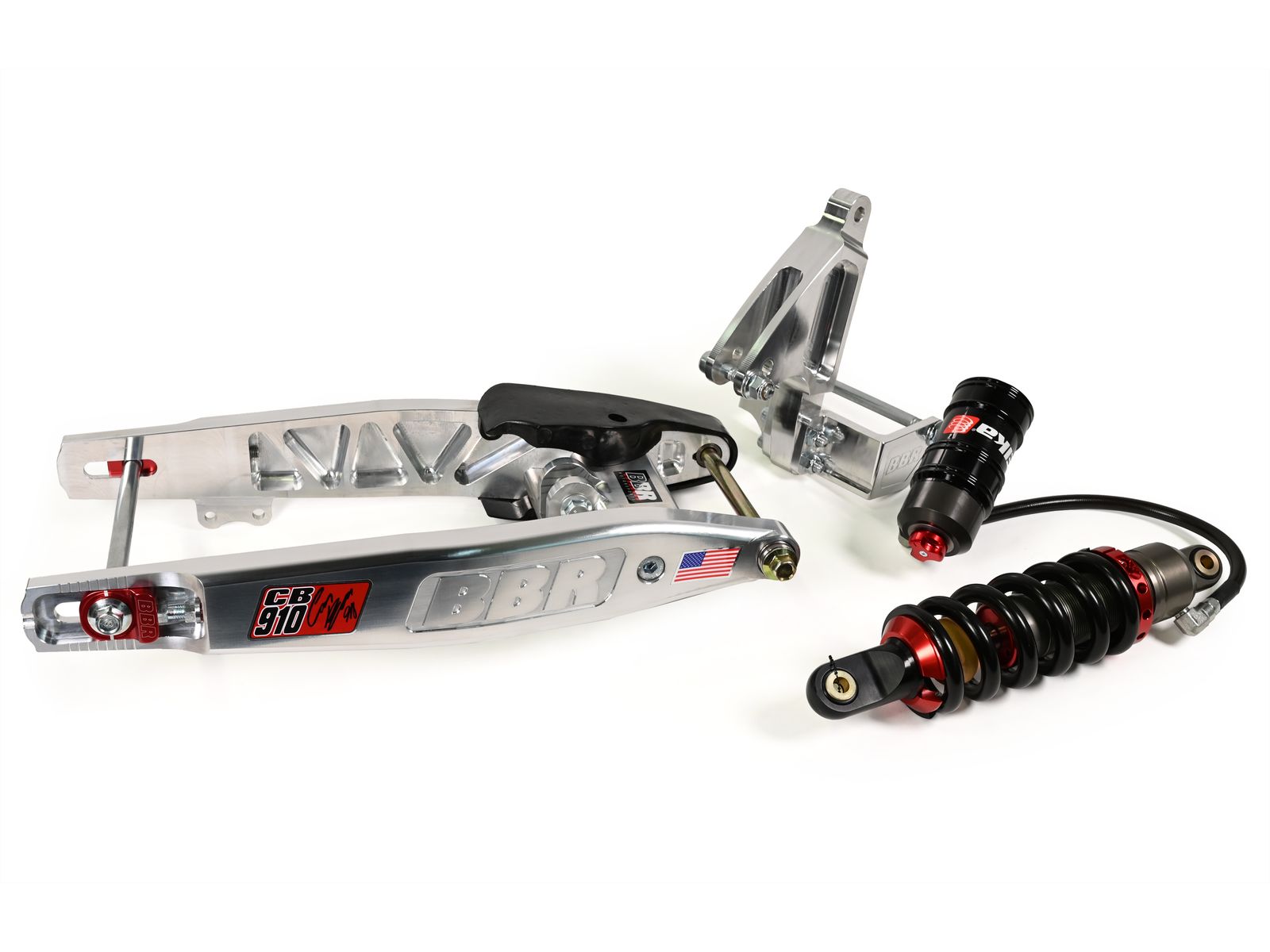

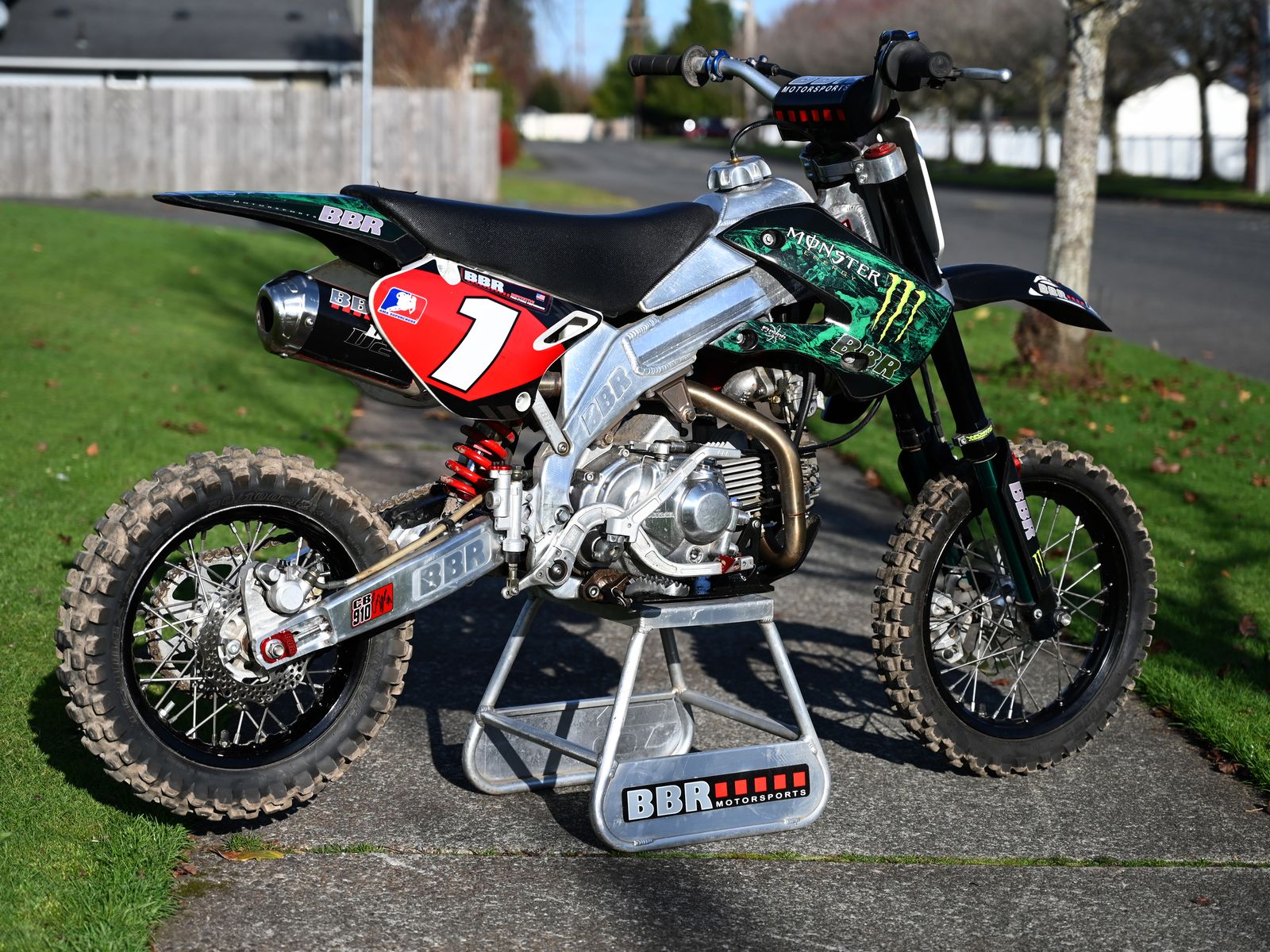

Swingarm Kit - KLX110 ProComp Swingarm Kit (Includes Chain Guide)


330-KLX-1110
330-KLX-1110

330-KLX-1110
330-KLX-1110

330-KLX-1110
330-KLX-1110











330-KLX-1110

Click photo to zoom

Swingarm Kit - KLX110 ProComp Swingarm Kit (Includes Chain Guide)
QTY    $1,999.95bbrmotorsports.shop
Any additional options and/or replacement parts will be available at the bottom of this page

Swingarm Kit - KLX110 ProComp Swingarm Kit (Includes Chain Guide)

All new BBR MX style, vertical shock, rear end kit for the KLX110 and KLX110L. We went back to the drawing board and completely redesigned the ultimate rear suspension upgrade for your pitbike. The swingarm is machined from 3 solid chunks of billet aluminum that fit together like a puzzle. Two high strength steel dowel pins, along with a press fit, ensure perfect alignment. Two 12mm bolts secure each side. The result is a strong and light swingarm that's survived the worst abuse BBR's test riders could throw at it. The side arms have been computer designed to be stiffer and stronger then any other swingarm we've ever built. That lets the bike track straighter through the whoops and exit turns smoother and more predictably than ever before.

The three piece billet upper shock mount fits all year KLX110 and KLX110F (including the 2010 and newer with the battery box).

The Elka shock is their lastest Stage 4 design with adjustable compression, rebound, and spring preload. Carson Brown approved valving ensures the best rear suspension on any KLX110 anywhere.


  • Machined from solid billet 6061 aluminum
  • Raw machined finish can easily be polished or burnished for a satin/brushed appearance
  • Bolt together construction secured with solid steel dowel pins, press fit, and 12mm high-strength bolts
  • Pocketed design ensures stiffness while reducing weight
  • Upper shock mount fits all years of KLX110's and KLX110L
  • Elka Stage 4 shock with 1100 lbs. spring
  • Length: 14.850" (377mm) from pivot bolt to forward axle position (center-to-center)
  • Axle slot length: 1.34" (34mm)
  • Chain guide mount is machined in place (not bolted on)
  • Includes Chain Guide
  • Fits the OEM rear KLX110 hub, the old BBR KLX110 disc brake hubs (no longer in production), and the Diamond Minis KX65 rear disc brake conversion kits

Note: You will need a longer chain (see Optional Parts below if you want to purchase one with your swingarm). ProComp swingarms use the BBR CRF/XR50 chainguides. They are also linked below in the Optional Parts section.


Tech Info
330-KLX-1110 Instructions


Part NumberImageDescriptionPrice
330-KLX-1110330-KLX-1110Swingarm Kit - ProComp W/Elka Shock Includes Chain Guide/ KLX/DRZ110/L, 02-Present *bbrmotorsports.shop

Replacement Parts

Part NumberImageDescriptionPrice

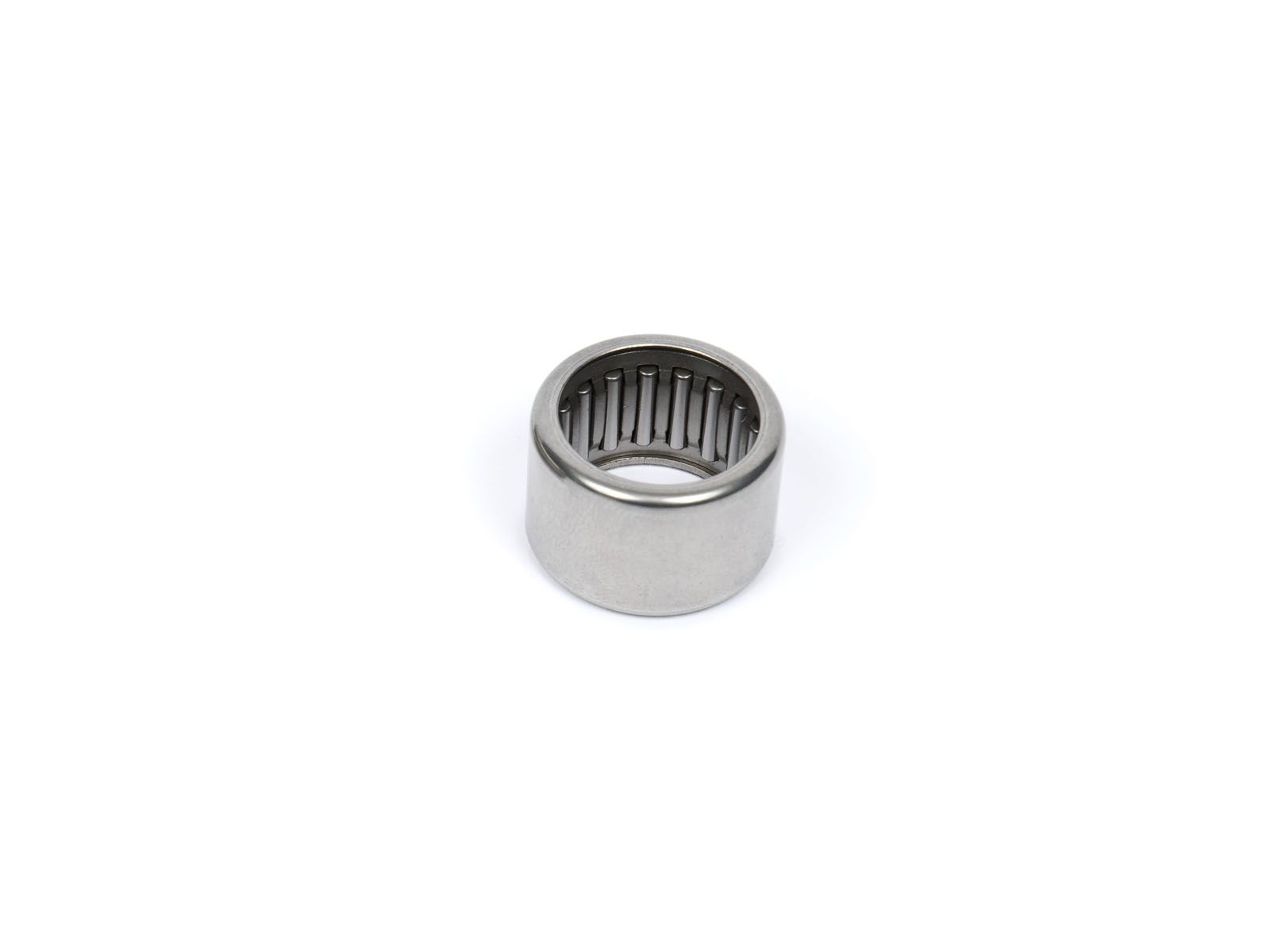

330-BBR-1010330-BBR-1010Swingarm Pivot Bearing - (ea) / All BBR Swingarmsbbrmotorsports.shop

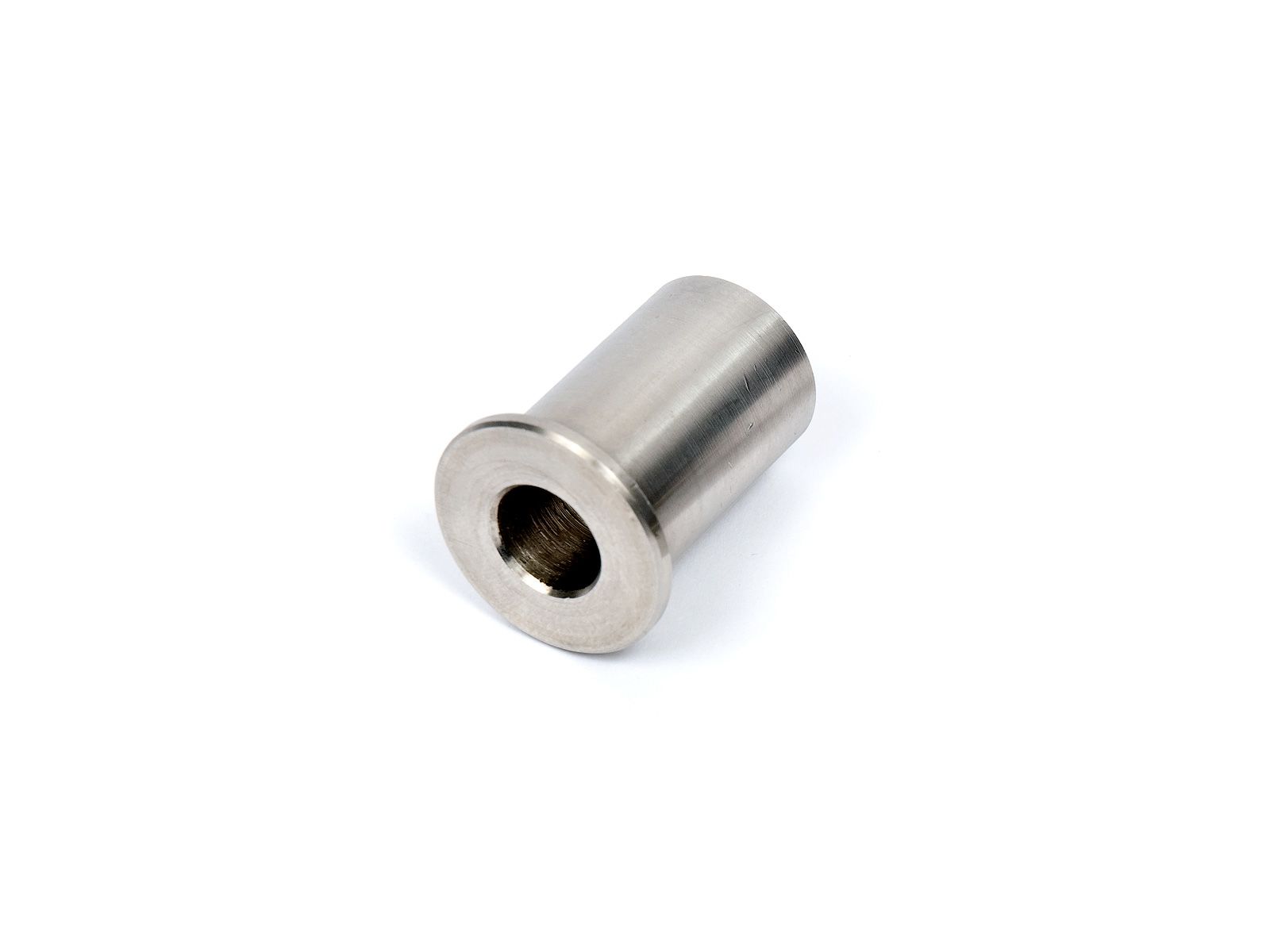

330-BBR-1057330-BBR-1057Swingarm Pivot Bushing - (ea) / Stock KLX/DRZ 110 w/Supercomp S/Abbrmotorsports.shop

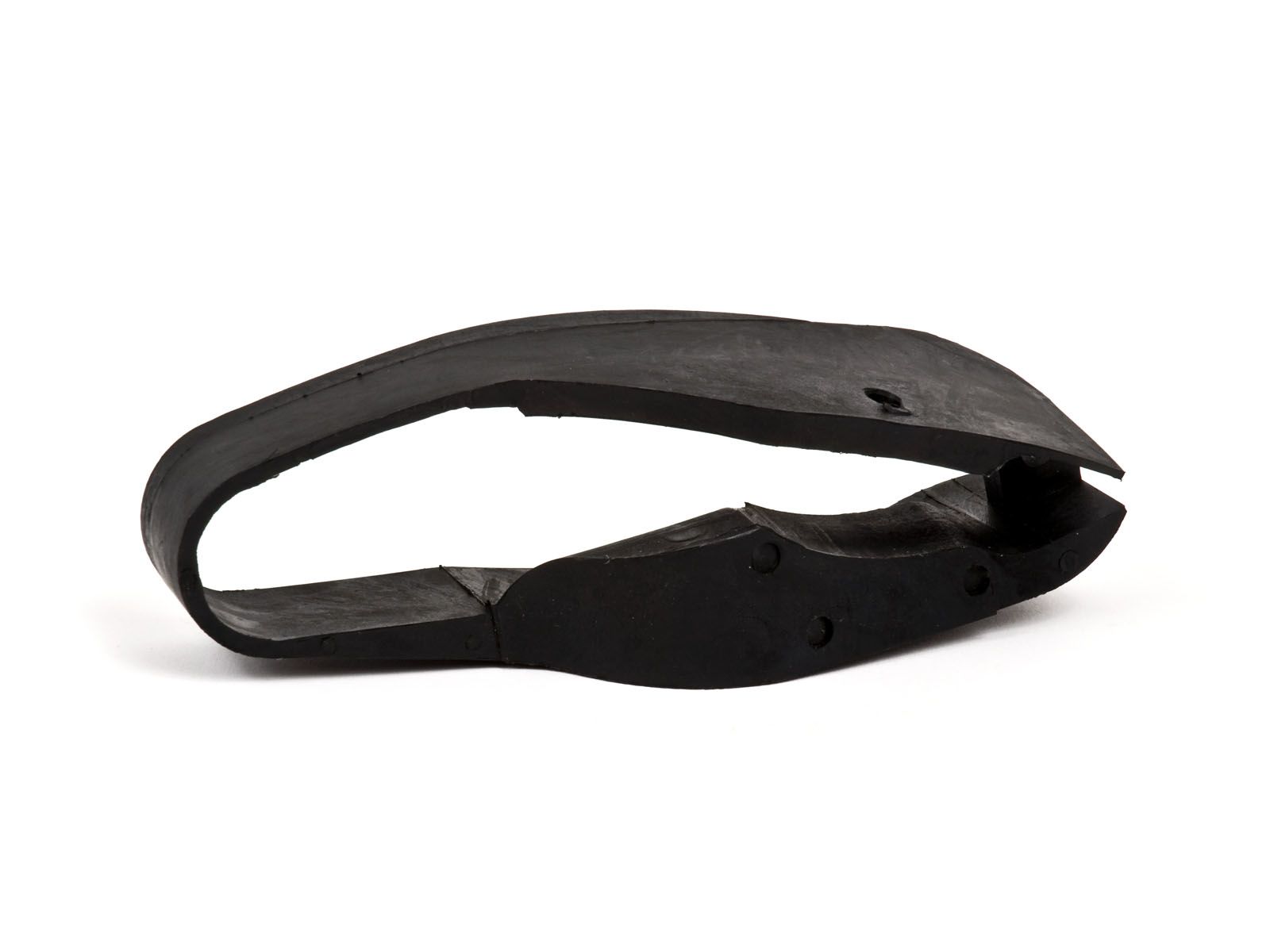

330-BBR-1101330-BBR-1101Chain Slider - SuperComp/ProComp Swingarmsbbrmotorsports.shop

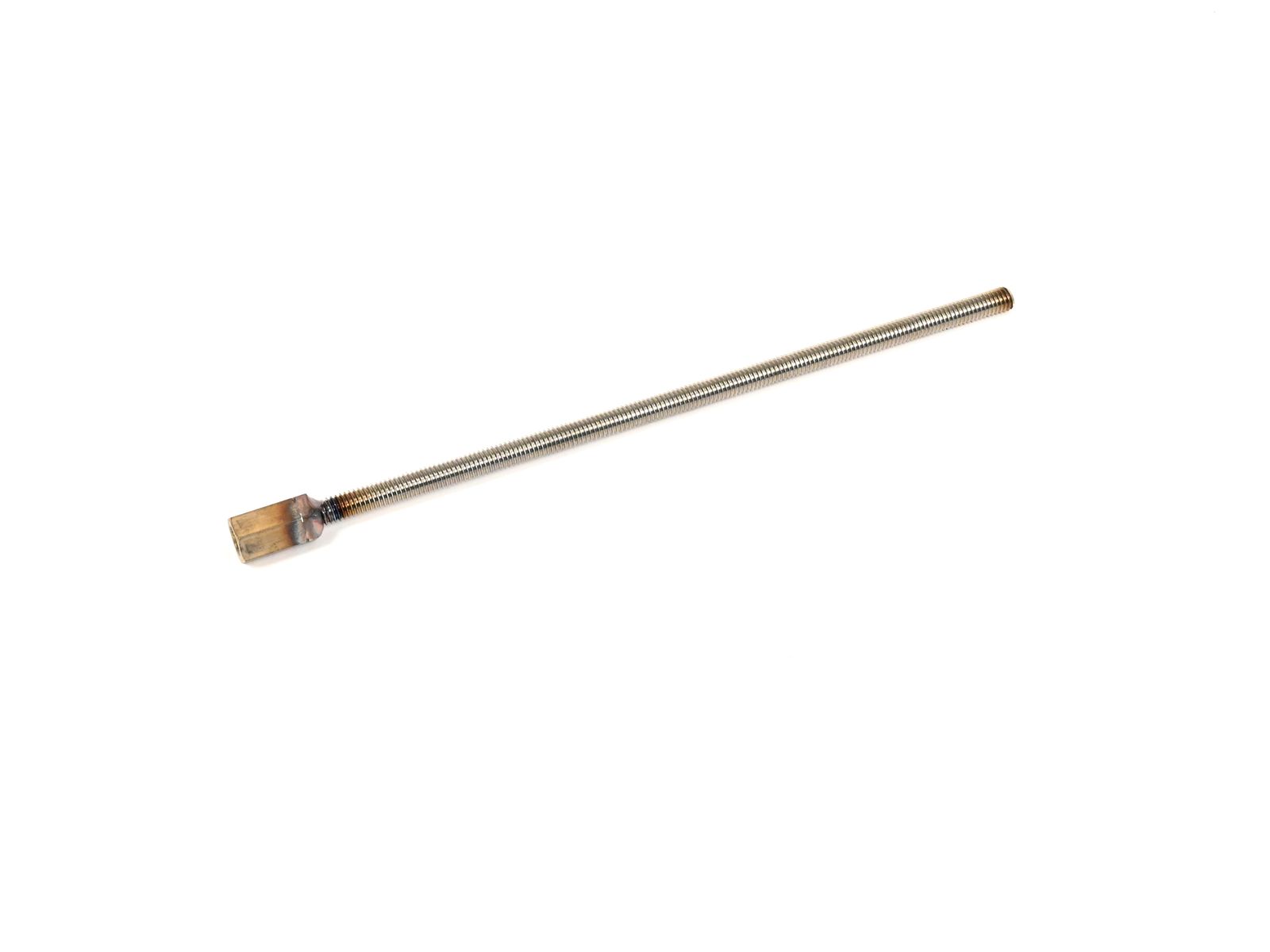

330-BBR-2002330-BBR-2002Brake Rod Extender - 6"bbrmotorsports.shop

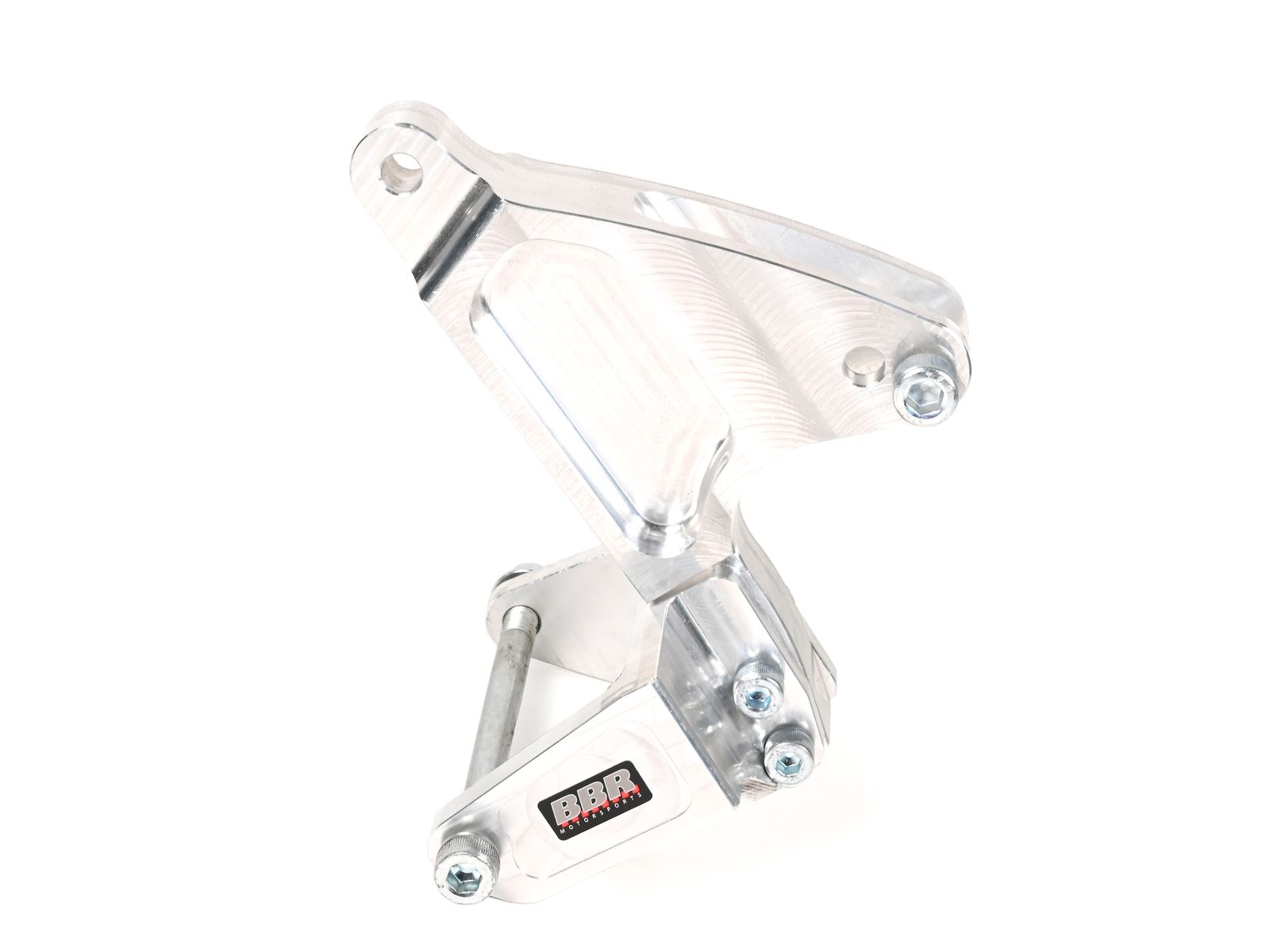

331-KLX-1110331-KLX-1110Upper Shock Mount - KLX/DRZ110/L, 02-Presentbbrmotorsports.shop

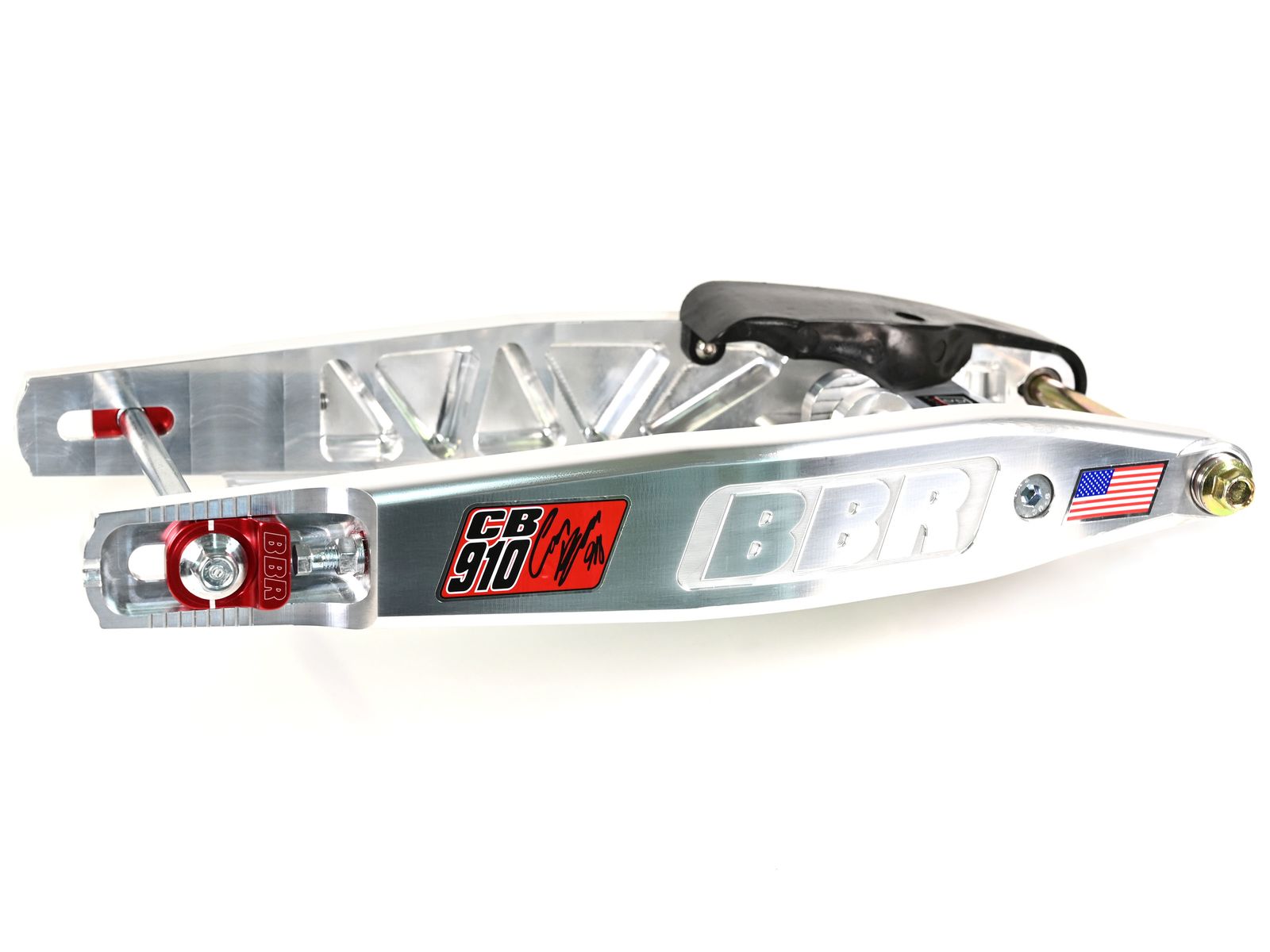

331-KLX-1115331-KLX-1115Swingarm - ProComp KLX110/Perimeter, swingarm only. Includes bearings, slider, axle blocks, etc.bbrmotorsports.shop

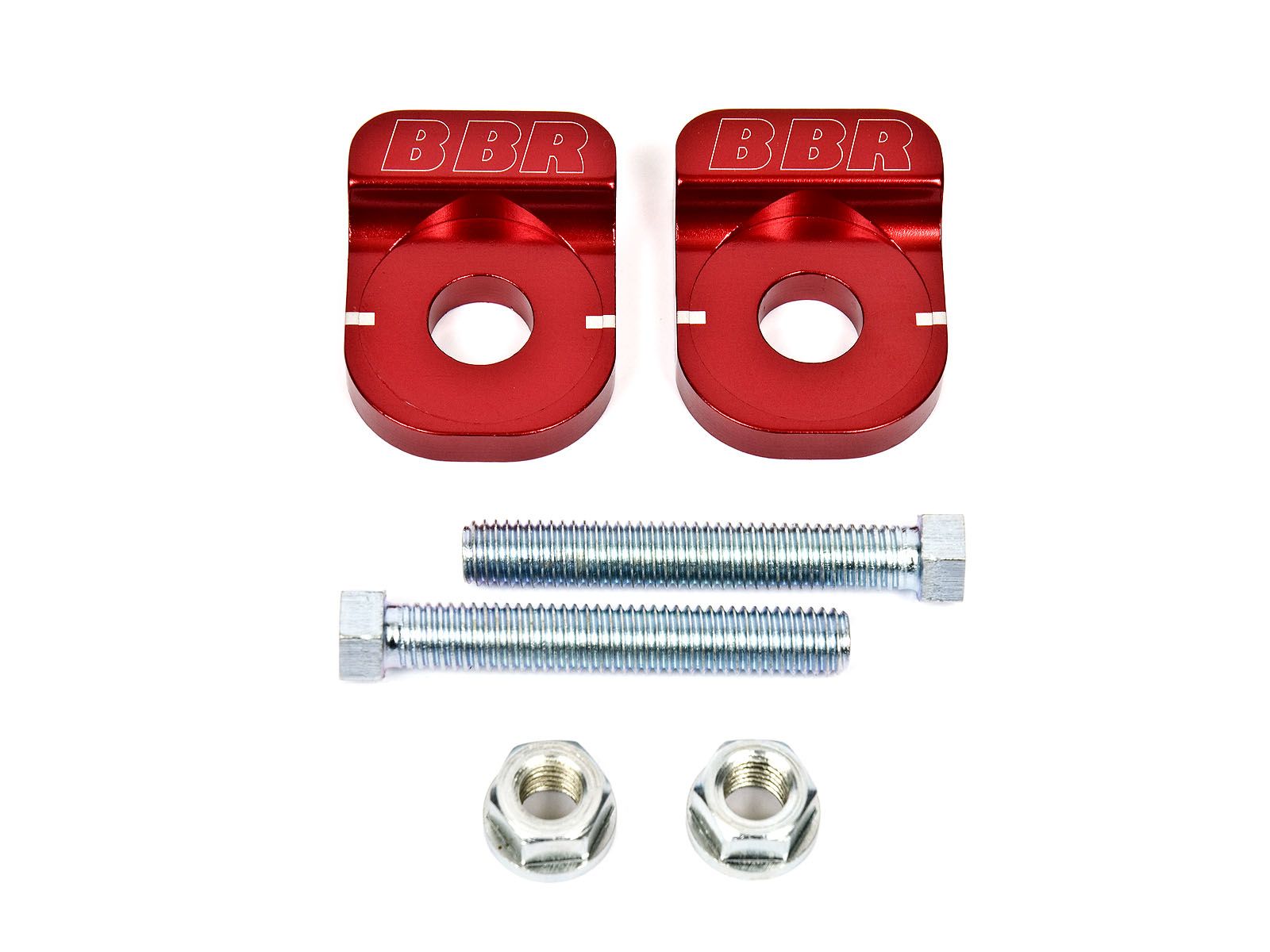

332-BBR-1041332-BBR-1041Axle Adjuster Blocks - Billet w/Hardware, Red / BBR Supercomp Swingarmsbbrmotorsports.shop

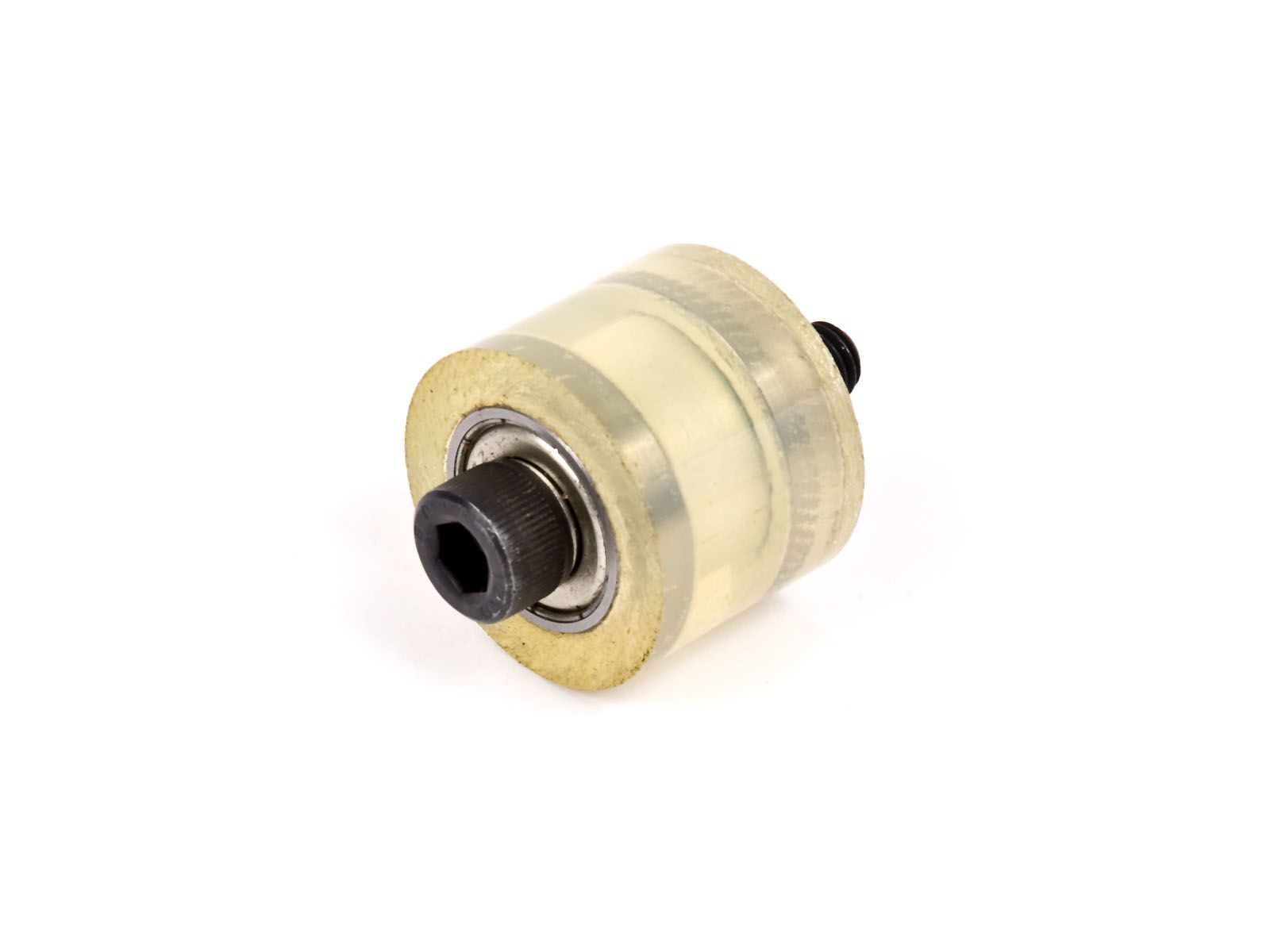

350-BBR-5112350-BBR-5112Chain Roller - SuperPro/Perimeter Framesbbrmotorsports.shop

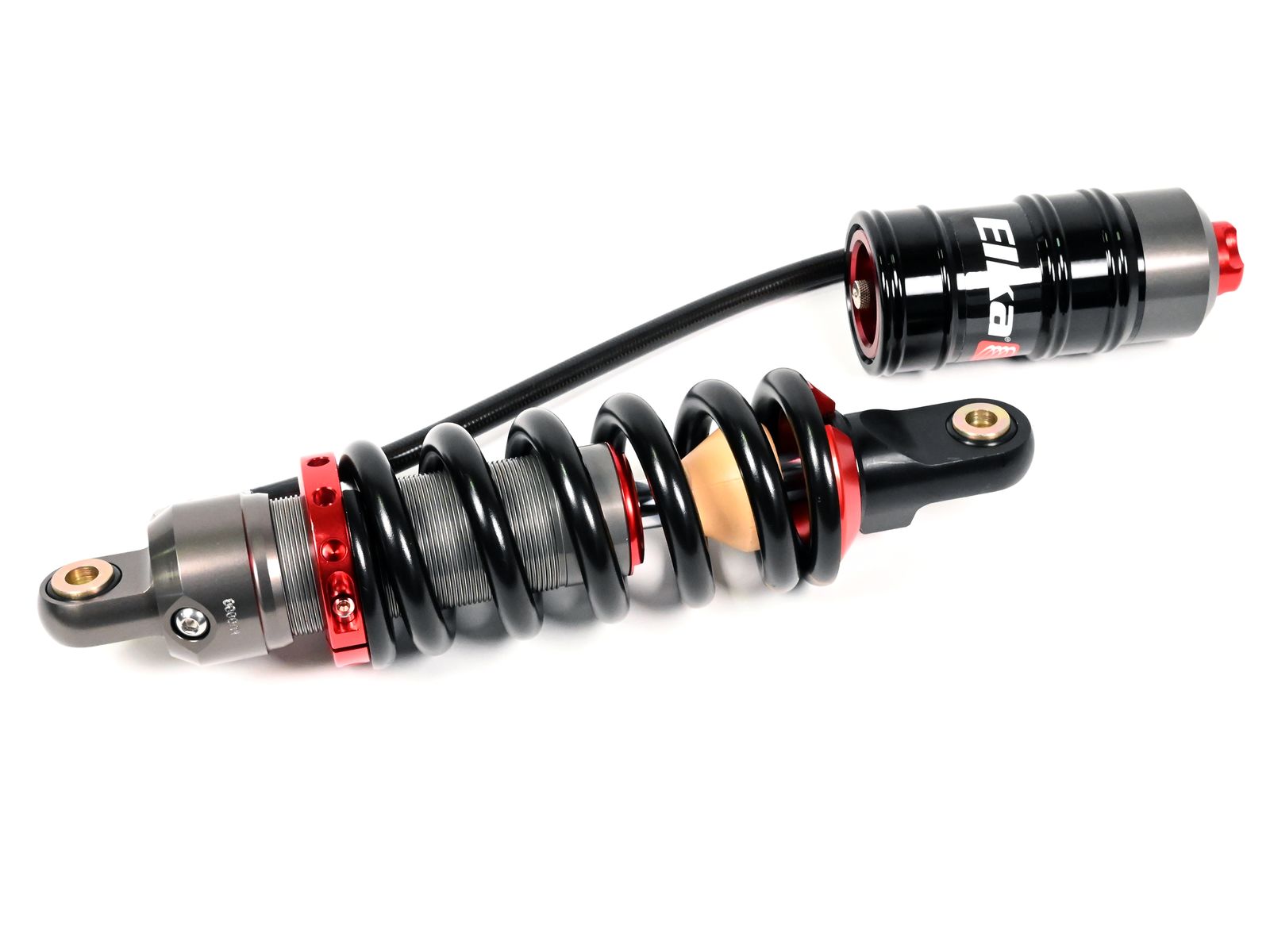

640-BBR-1105640-BBR-1105Shock - BBR/Elka Stage 4 Shock w/1100lb spring / KLX/DRZ Perimeter-S/P , ProComp *bbrmotorsports.shop
710-BBR-2011710-BBR-2011Decal - BBR Stock Comp Signature Swingarmbbrmotorsports.shop
