Carb Kit - Keihin 26mm / CRF150F, 03-Present


420-HCF-1501
420-HCF-1501

422-HCF-1501
422-HCF-1501

512-BBR-2001
512-BBR-2001
420-HCF-1501

Click photo to zoom

Carb Kit - Keihin 26mm / CRF150F, 03-Present
QTY    $314.95bbrmotorsports.shop
Any additional options and/or replacement parts will be available at the bottom of this page

Carb Kit - Keihin 26mm / CRF150F, 03-Present

Note: These carburetors are no longer available - so we cannot build these carb kits. We'll leave the info here for customers that want to build up their own "kits". The carbs are simply the OEM Honda XR200 carb (we typically used the 2001 model year XR200 - but all the single carb XR200 carbs were similar). Honda and Keihin have discontinued them. You can source your own carb and then use our carb adapter (sold below in the replacement parts section) to fit it up to the OEM manifold. You can either use the OEM Honda XR200 throttle and cable or source these on the aftermarket (Motion Pro should be able help). We're not going to sell the throttle cable and carb top anymore, so you're on your own there. Feel free to use our jetting specs to get you started on jetting. Avoid the eBay generic XR200 replacement carbs. You only want the OEM Keihin Honda XR200 carb. We hope to do completely new carb kits in the future - but they won't be available for many months. These carb kits work really well if you're willing to do the work on your own.

26mm Keihin carburetor complete with manifold adapter, throttle assembly, throttle cable and extra jets for fine tuning. This carb is not intended for use with the stock bore size. It is for big bored CRF150F's. It will be too big when used with the stock motor and result in a "off-idle" hesitation that you cannot jet out.


  • 26mm round-slide Keihin carb
  • Pre-jetted for most big-bore applications
  • CNC machined manifold adapter
  • Includes throttle and cable



Part NumberImageDescriptionPrice
420-HCF-1501420-HCF-1501**Discontinued** Carb Kit - Keihin 26mm / CRF150F, 03-Presentbbrmotorsports.shop

Replacement Parts

Part NumberImageDescriptionPrice

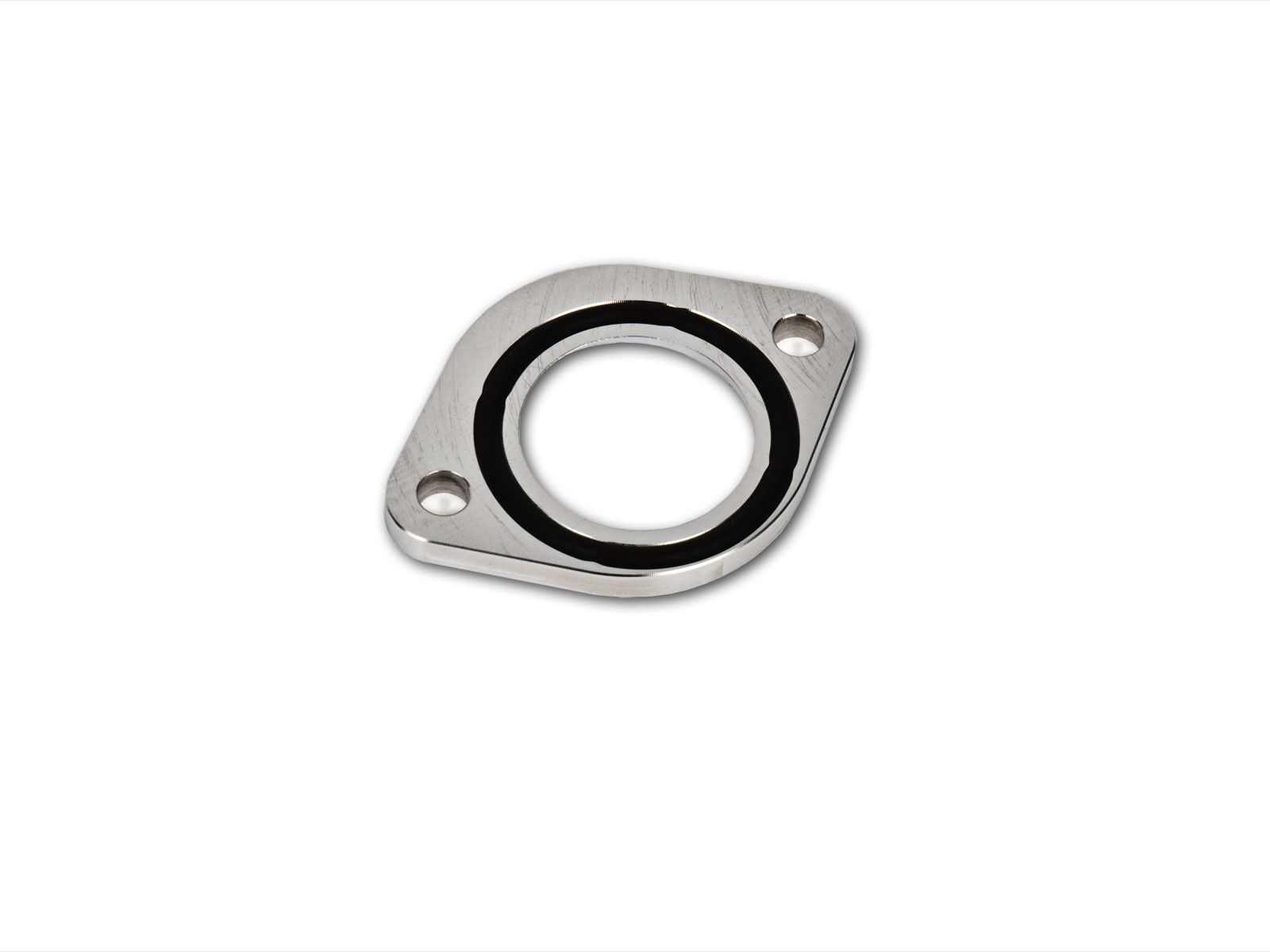

422-HCF-1501422-HCF-1501Carb Adapter - Keihin 26mm / CRF/XRbbrmotorsports.shop
425-BBR-1001425-BBR-1001Carb Top - BBR Keihin 26mm Carb Kit / DRZ/KLX125 / XR/CRF100 / CRF150 / KLX140 / TTR125bbrmotorsports.shop
512-BBR-2001512-BBR-2001Throttle Assembly - BBR Carb Kits / Brake Kitsbbrmotorsports.shop

Optional Parts

Part NumberImageDescriptionPrice
500-BBR-1001500-BBR-1001Grips - BBR 'CR' Stylebbrmotorsports.shop
