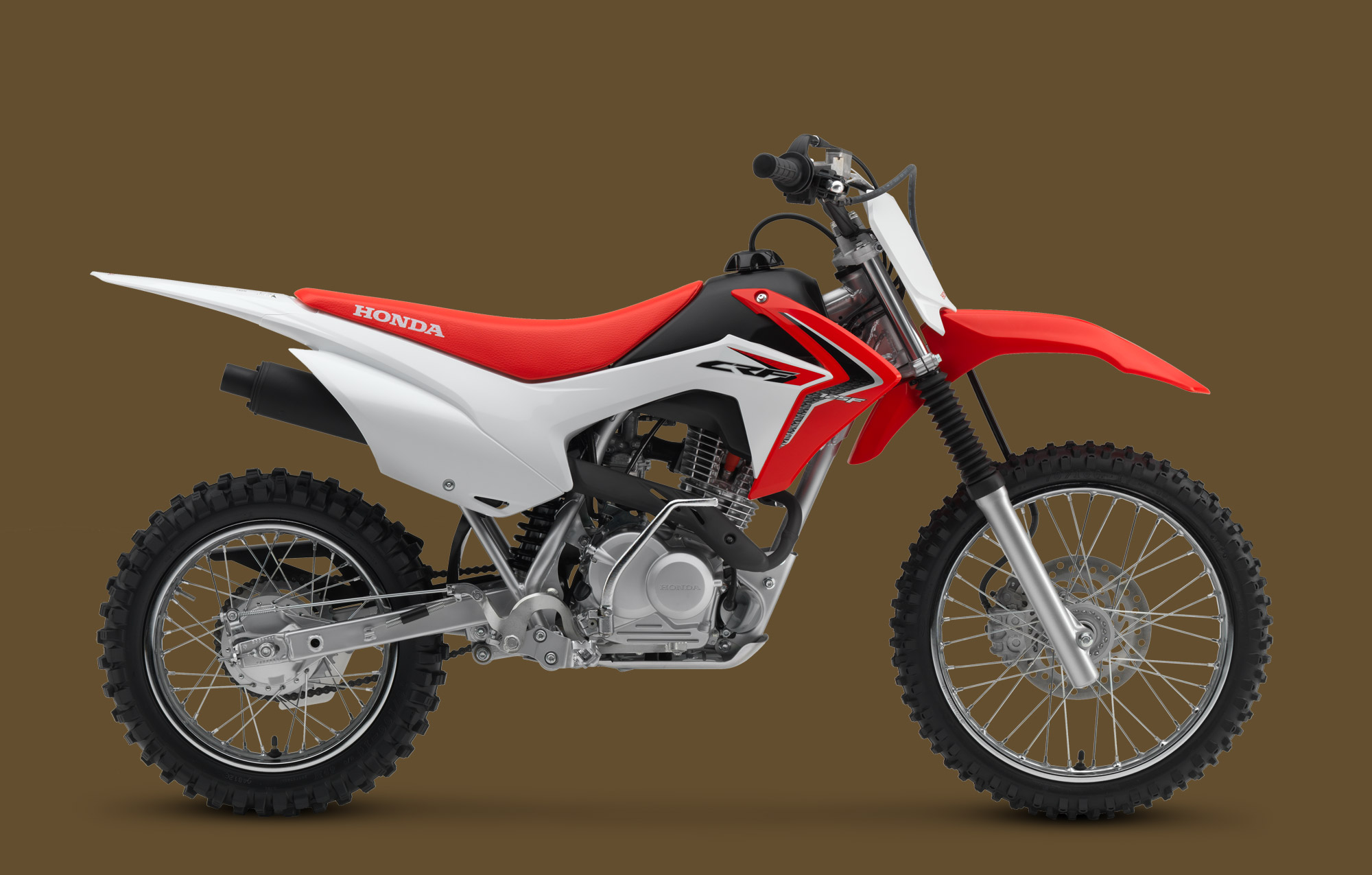

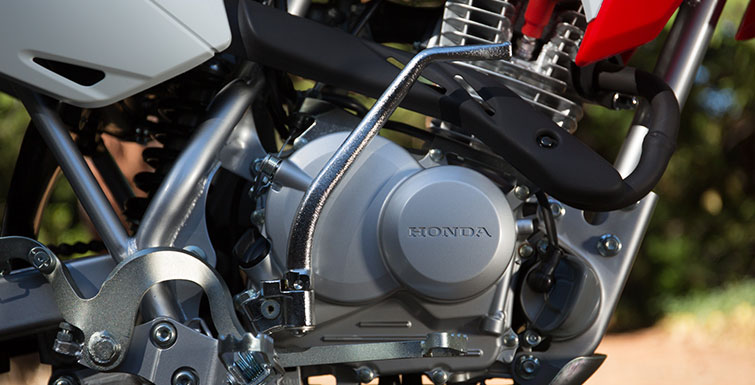

Produced in Chinese factory of the Japanese manufacturer, the CRF125F is equipped with an air-cooled 124.9 cm3 developing a power of 8.9 hp and torque of 10.2 Nm available mainly at low and medium revs cylinder. The kick start is assisted by an electric starter to facilitate the lives of young people.It is always good to see Honda "...facilitate the lives of young people" through dirt-bikes...
Aesthetically, the 125 takes the design of the 2014 CRF450R for a more assertive style. It also has a new frame, revised suspension and a more powerful braking than its predecessor.
Honda's Yuichi Kato, Managing Director of TT / Quad department,
"The new CRF125F keeps easy dimensions of its predecessor but has a new improved engine. It also introduces new forms and a number of other characteristics, the proposed price for a limited while. I hope that the CRF125F encourage more people to try off-road for recreational as competition."

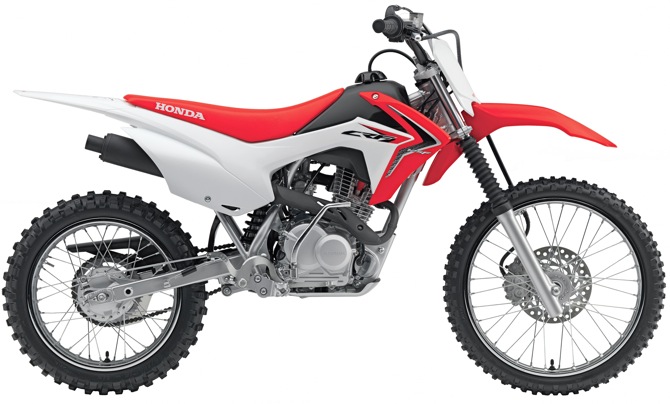

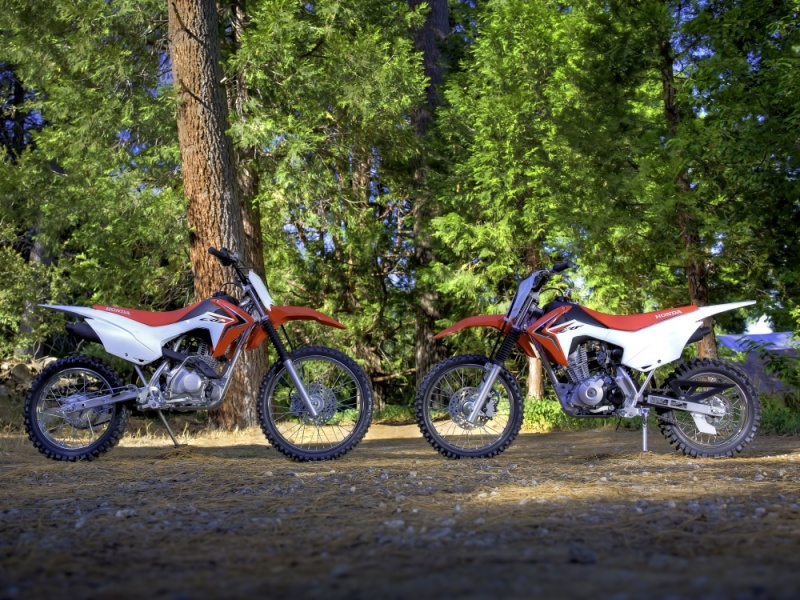

2014 Honda CRF125F | 2014 Honda CRF125F (BW) | 2013 Honda CRF100F | |
ENGINE | |||

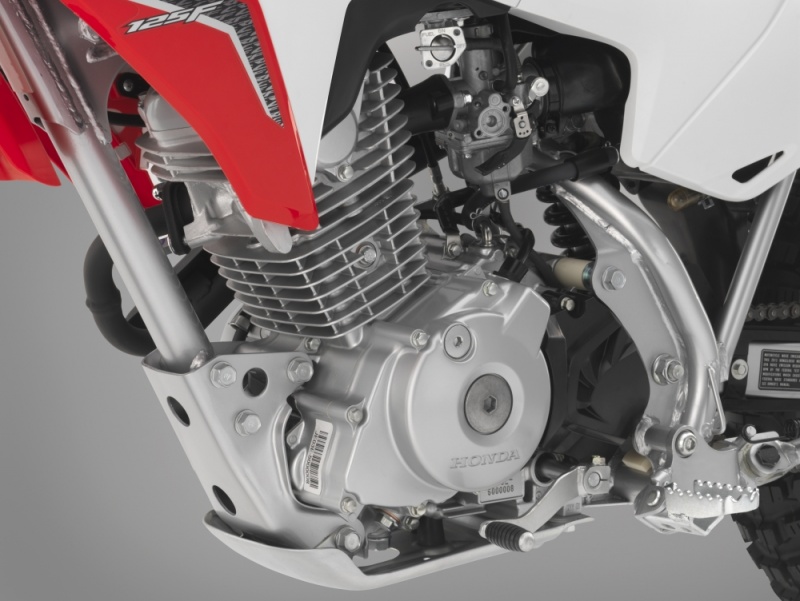

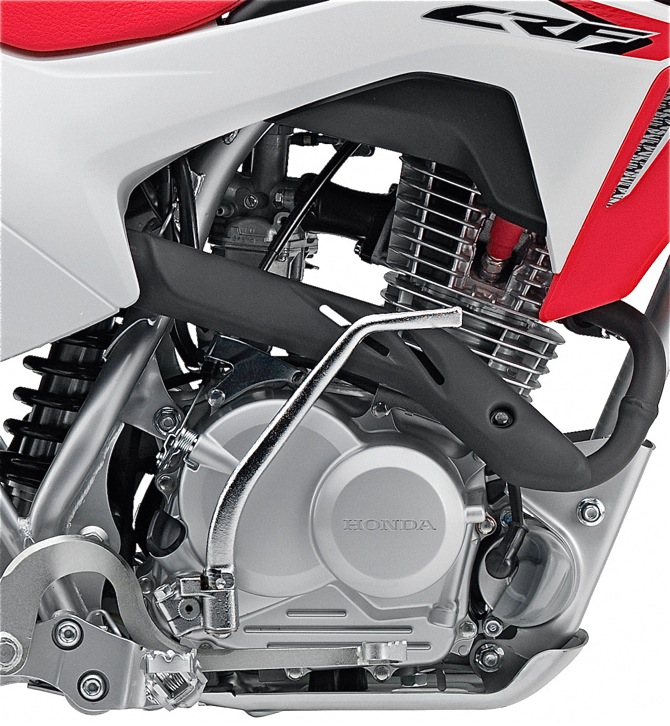

Engine Type | 124.9cc air-cooled single-cylinder four-stroke | 124.9cc air-cooled single-cylinder four-stroke | 99cc air-cooled single-cylinder four-stroke |
Bore and Stroke | 52.4mm x 57.9mm | 52.4mm x 57.9mm | 53mm x 45mm |
Compression Ratio | 9.0:1 | 9.0:1 | 9.4:1 |
Valve Train | SOHC; two-valve | SOHC; two-valve | SOHC; two-valve |
Induction | 20mm piston-valve carburetor | 20mm piston-valve carburetor | 22mm piston-valve carburetor |
Ignition | DC-CDI | DC-CDI | CD |
DRIVE TRAIN | |||
Transmission | Four-speed | Four-speed | Five-speed |

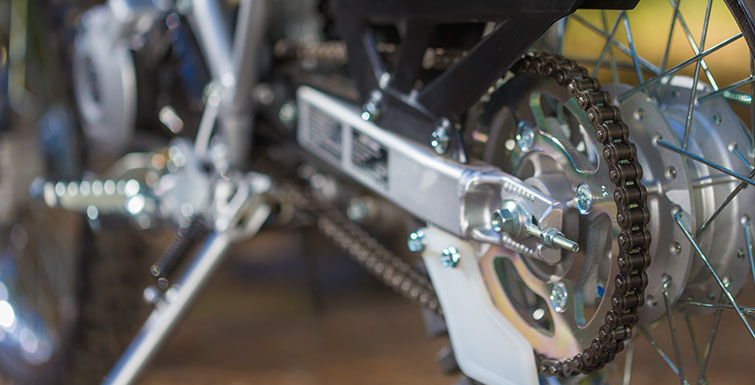

Final Drive | 13T/46T | 13T/49T | #428 chain; 14T/50T |
CHASSIS / SUSPENSION / BRAKES | |||
Front Suspension | 31.0mm leading-axle fork; 5.5 inches of travel | 31.0mm leading-axle fork; 5.9 inches of travel | 27mm leading-axle Showa® fork; 5.2 inches travel |
Rear Suspension | Pro-Link single-shock; 4.5 inches of travel | Pro-Link single-shock; 5.9 inches of travel | Pro-Link® Showa single shock; 5.8 inches travel |

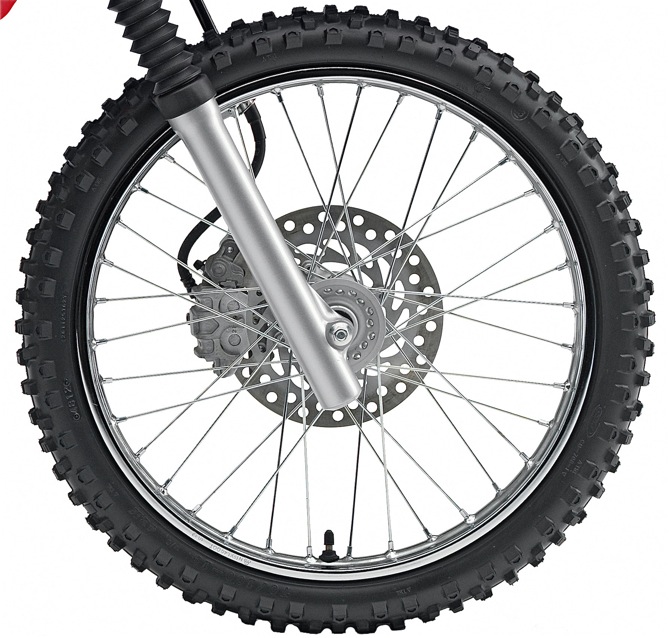

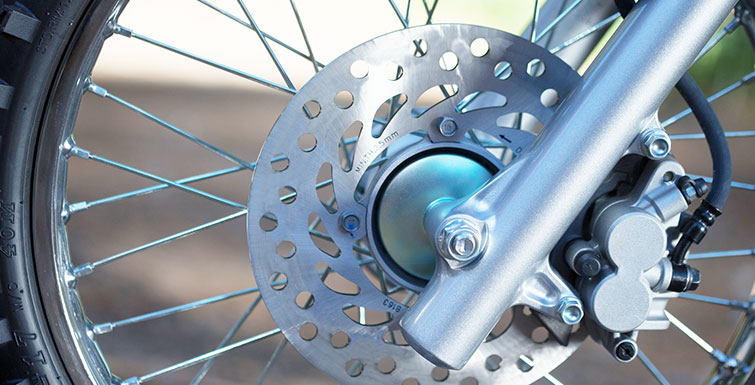

Front Brake | 220mm hydraulic disc | 220mm hydraulic disc | Drum |

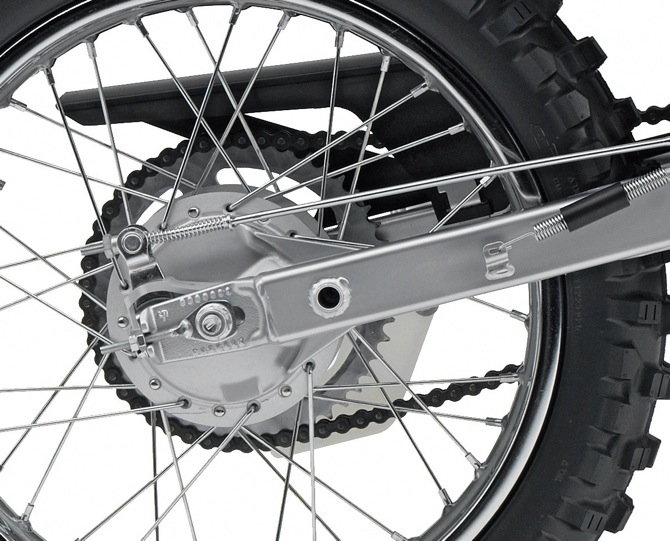

Rear Brake | Drum | Drum | Drum |
Front Tire | 70/100-17 | 70/100-19 | 2.50-19 |
Rear Tire | 90/100-14 | 90/100-16 | 3.00-16 |
DIMENSIONS | |||
Rake | 25°30’ (Caster Angle) | 27°30’ (Caster Angle) | 28.5° (Caster Angle) |
Trail | 81mm (3.2 inches) | 94mm (3.7 inches) | 99mm (3.9 inches) |
Wheelbase | 48.0 inches | 49.4 inches | 49.2 inches |
Seat Height | 28.9 inches | 30.9 inches | 30.9 inches |
Curb Weight | 192 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride) | 194 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride) | 170 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride) |
Fuel Capacity | 1.1 gallons, including 0.2-gallon reserve | 1.1 gallons, including 0.2-gallon reserve | 1.3 gallons, including 0.3-gallon reserve |
Ground Clearance | 8.5 inches | 10.4 inches | 9.9 inches |
OTHER | |||
Emissions | Meets current California Air Resource Board (CARB) and EPA off-road emissions standards. | Meets current California Air Resource Board (CARB) and EPA off-road emissions standards. | Meets current California Air Resource Board (CARB) and EPA off-road emissions standards. |
Available Color | Red | Red | Red |
Model ID | CRF125F | CRF125FB | CRF100F |
FACTORY WARRANTY INFORMATION | |||
Six Months | Transferable limited warranty; extended warranty available with a Honda Protection Plan. | Transferable limited warranty; extended warranty available with a Honda Protection Plan. | Transferable limited warranty; extended warranty available with a Honda Protection Plan. |
