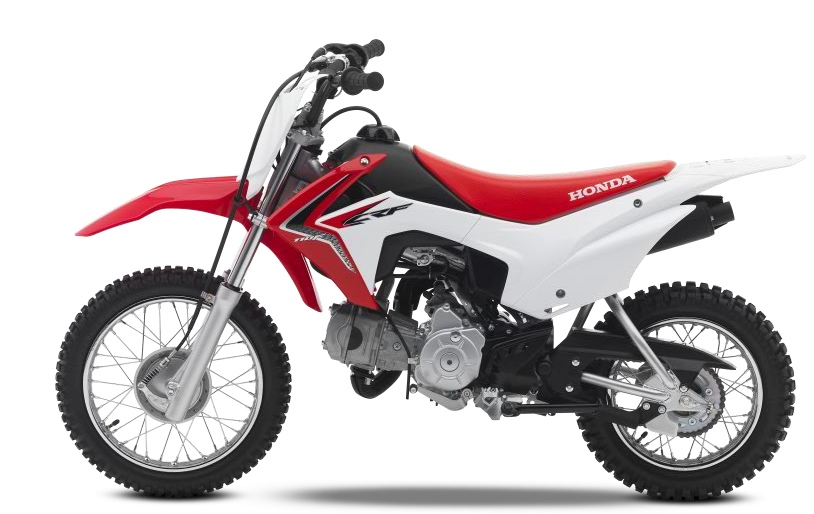

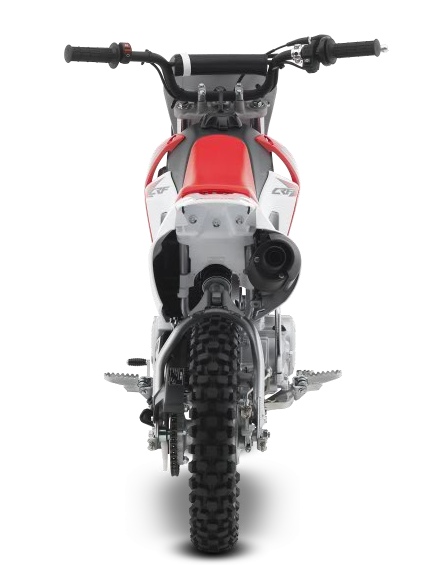

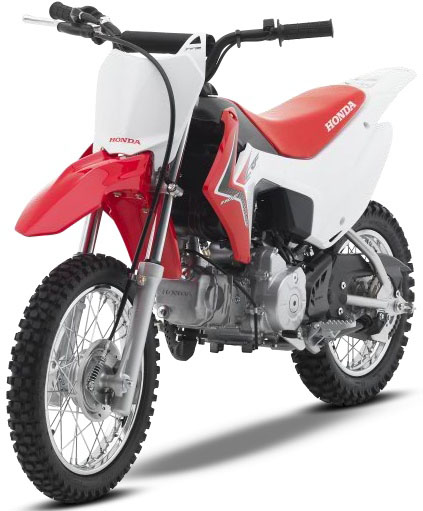

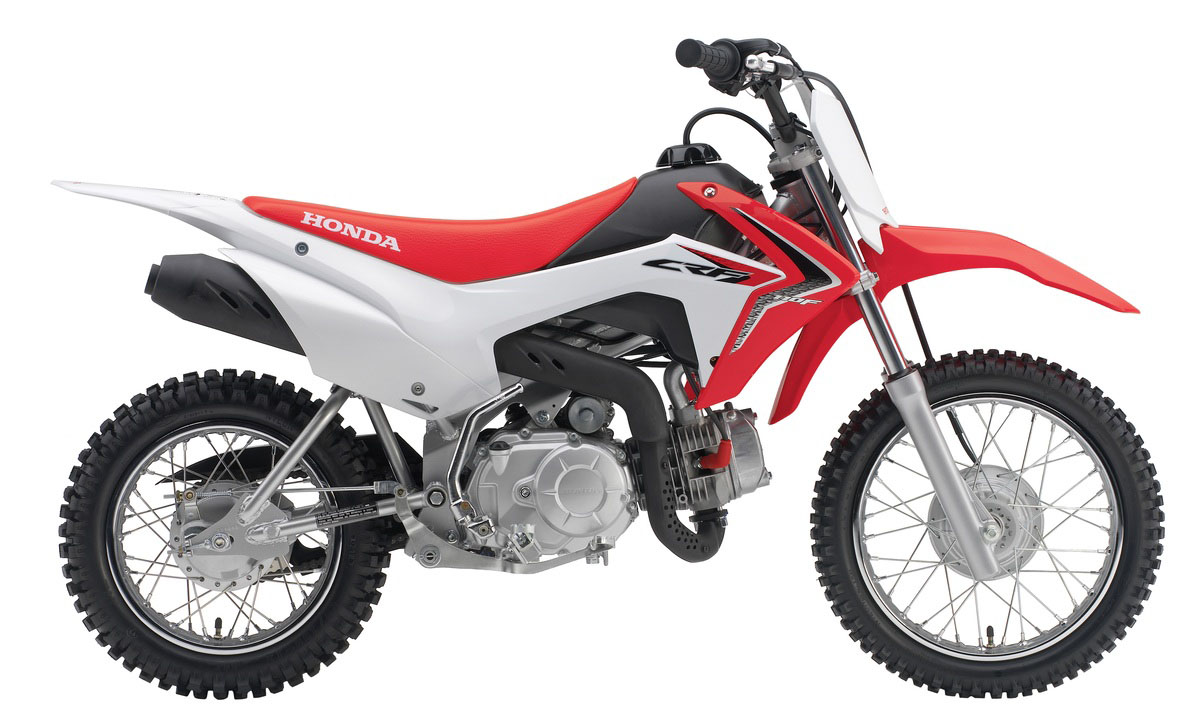

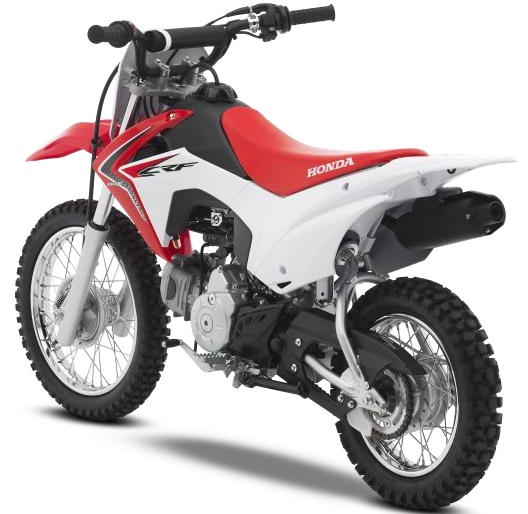

The new CRF110F takes over the place of honor long held by the popular CRF70F among Honda's family of fun, entry-level off-road bikes. The CRF110F features a low seat height, modest size, and a four-speed transmission with an automatic clutch on par with the CRF70F that it replaces. The new 110cc powerplant is tuned to meet the needs of those new to riding, and with a new throttle-limiter feature it offers additional tuning options to suit a variety of riders. Also, the CRF110F gets a new, convenient electric starter. Toss in race-inspired styling evocative of the hot new CFR450R, and you have a great new option that expands the family of entry-level dirt bikes from Honda.

Features and benefits

• New air-cooled single-cylinder four-stroke 110cc engine tuned for the beginning rider.
• Four-speed gearbox with automatic clutch.
• Adjustable Throttle Limiter Screw to match rider abilities.
• Convenient electric starter with kickstart backup.
• Low seat height of only 26.3 inches.
• Handlebar pad.
• Race-inspired styling evocative of the hot new CRF450R.

Model:	CRF110F
Engine Type:	110cc air-cooled single-cylinder four-stroke
Bore and Stroke:	50mm x 55.6mm
Compression ratio:	9.0:1
Valve Train:	SOHC; two-valve
Induction:	13mm piston-valve carburetor
Ignition:	CD
Transmission:	Four-speed with automatic clutch
Final Drive:	#420 chain; 14T/38T
Suspension	Front: Telescopic fork; 3.9 inches travel Rear: Single shock; 3.43 inches travel
Brakes	Front: Drum Rear: Drum
Tires	Front: 70/100-14 Rear: 80/100-12
Wheelbase:	41.9 inches
Rake (Caster Angle):	24°25'
Trail:	52mm (2.0 inches)
Seat Height:	26.3 inches
Ground Clearance:	6.9 inches
Fuel Capacity:	1.1 gallons, including 0.3-gallon reserve
Color:	Red
Curb Weight*:	163 pounds

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride.
Meets current EPA and CARB off-road emissions standards.
